System FRAD (Full Range Automatic Die)
Automatic die adjustment with gap adjustment:
"Thermal Bolts" + mechanically, electromotive driven and controlled sliding wedge adjustment
FRAD is a combination of two adjustment systems:
- Mechanic adjustment of all thermal bolts with a sliding wedge system
- "Thermal Bolts" utilizing thermal expansion of steel bolts
Bolts are heated with heating cartridges and chilled with air (external ventilation).
|
|
|
|
|

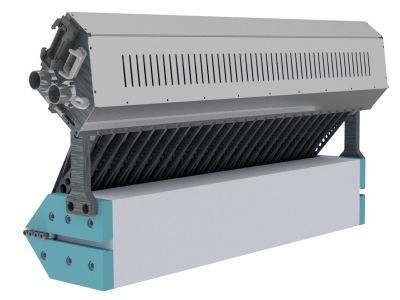

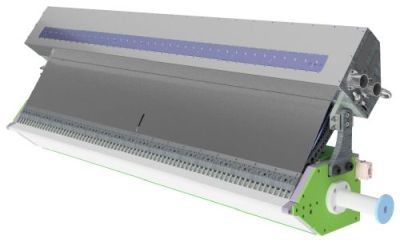

Automatic system FRAD attached on a new extrusion-die |
||
FRAD is a combination of two adjustment systems:
Mechanic adjustment of all thermal bolts with a wedge system
Thermal bolts utilizing thermal expansion of steel bolts
Bolts are heated with heating cartridges and chilled with air (external ventilation)
Consisting of
Mechanic adjustment with a driven wedge system, driven with electric motor
Thermal bolts with heating cartridges
Casing with connection for ventilation
Fan
Technical data’s mechanical adjustment system:
Push only
Operating range: 2 mm
Drive: asynchronous motor with gearbox and position measuring system
Technical Data’s
Push only elements
Operating range: 300 µm
Partition: 30mm
Heating cartridges, rated power: 80 W
Mechanical fine-tuning with fine thread (0,5 mm/rev.)
Thermal separation to extrusion dies (thermal brakes)
